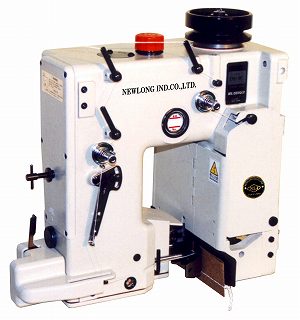

DS-9

Newlong/NLI

Bag Closing Sewing Machine

  • High Speed Bag Sewing
  • Materials such as Multi-paper and Polypropylene
  • High production. With a capacity of 850 bags per hour
  • Equipped with an internal lubrication system which reduces maintenance costs
  • Low vibration with low noise level
  • Variable stitch length and speed

Description

Model DS-9A DS-9AW DS-9C DS-9CW DS-9P
Max. Speed  2,700rpm 2,500rpm 2,700rpm 2,500rpm 2,700rpm
Seam Double thread chain stitch
Stitch Width 7-11.5mm 7-10.5mm 7-11.5mm
Bag Material Paper・PP Net bag
Thickness Paper bag 4P with a tuck
Cutter Half automatic thread cutter Automatic crepe tape cutter
Needle DR-H30 #26 DR-G67 #26
Oiling Oil bath
Oil Tellus #32
weight 41.0kg 38.0kg
Feature thread cutter Double needle of DS-9A crepe tape cutter Double needle of DS-9C Net bag
 Nothing cutter

depending on sewing material and operation.
